Description

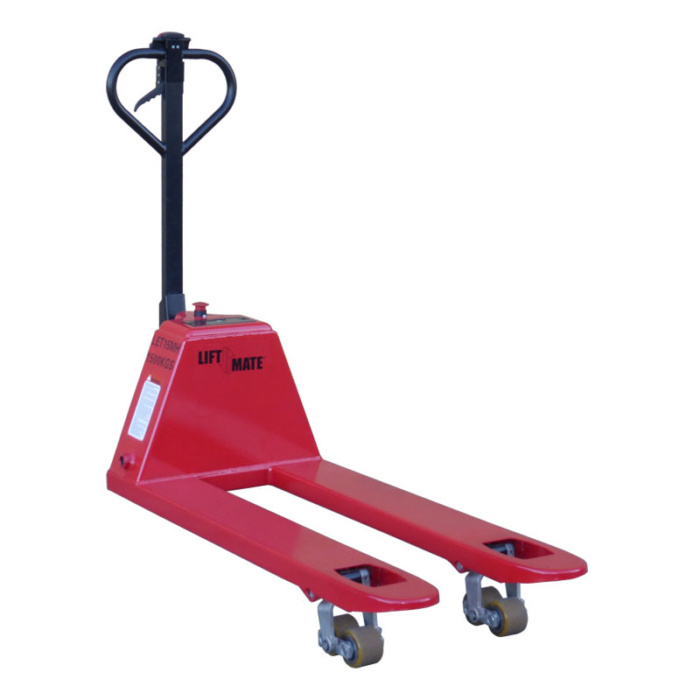

Powered drive, manual hydraulic lift
Easy to operate, powerful and portable truck

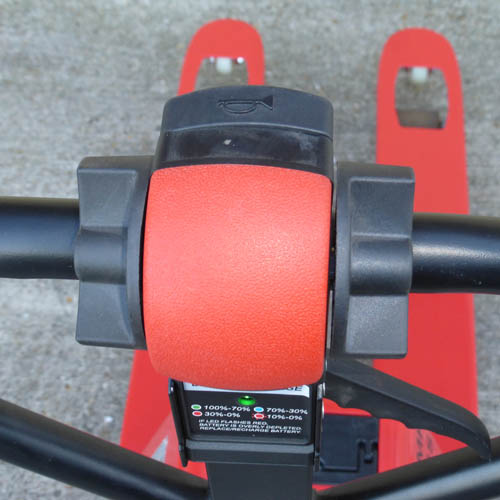

Ergonomically designed handle with LED battery indicator
Reversing button and Accelerator on handle
Forks designed for easy pallet entry
Portable lithium battery
Quick charging, 2 – 5 hours
Integrated design of Key Switch and Emergency Stop
Minimum maintenance

Technical Specifications:
Model LEMP20M 540×1000 LEMP20M 540×1150
Drive Electric Electric
Capacity 1500 kg 1500 kg
Load Centre 500 mm 600 mm
Length of Fork 1000 mm 1150 mm
Width over Forks 540 mm 540 mm
Raised Height 200 mm 200 mm
Lowered Height 80 mm 80 mm
Fork Thickness 55 mm 55 mm
Overall Length 1390 mm 1540 mm
Rear Length 390 mm 390 mm
Battery 24V / 20Ah 24V / 20Ah
Minimum Turning Radius 1190 mm 1340 mm
Aisle Width with 1000 x 1200 Lengthways 1950 mm 2100 mm
Aisle Width with 800 x 1200 Lengthways 1770 mm 1920 mm
Type of Load Rollers Single Tandem
Maximum Travel Speed (laden) 4 km/h 4 km/h
Maximum Travel Speed (unladen) 4.5 km/h 4.5 km/h
Gradeability (laden) 3% 3%
Gradeability (unladen) 18% 18%
Drive Motor 0.5 kW 0.5 kW
Weight (with battery) 105 – 110 kg 105 – 110 kg
